Portable All-in-one fiber laser marker
New and Improved! Designed and engineered by Rock-Solid Laser for mobility. It offers an adjustable galvo scanner head to project between 20 to 60 watts of fiber laser power. Operates using a solid-state 1064nm fiber laser that is built to serve with very little maintenance and zero consumables. Includes a 2-Year Warranty that includes the fiber laser power
Laser Power
Starting at 20W with 30W, 50W, 60W options. Increasing power increases the marking and engraving speed and engraving depth into the metal surface. Air cooled system with a 100,000+ hour rated life span - includes a 2-Year Warranty.

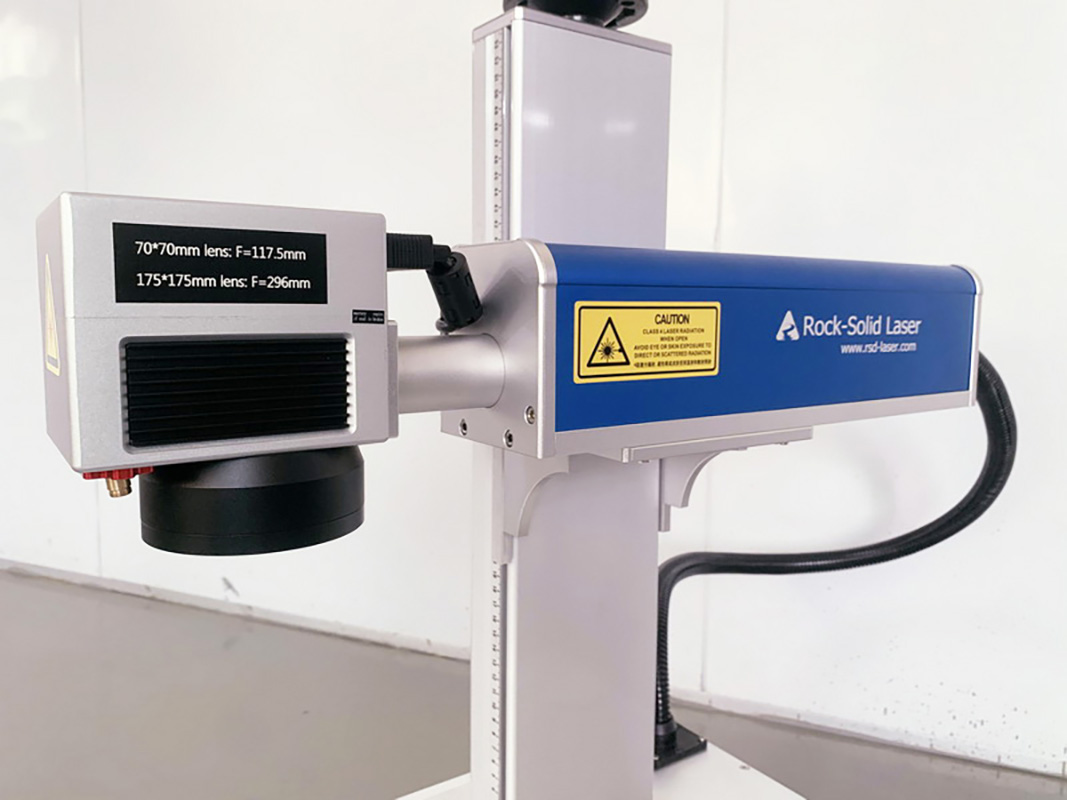

Scan Head
Compact Scan Head with projection style high speed galvanometer is up to 100X faster than gantry style lasers
Z-axis
Adjustable Z-axis up to 800mm of vertical height adjustment for installing taller focal length lenses.
Marking Area
The machine comes standard with a large open platform with a 110*110mm marking area with options up to 175*175mm.
The focal lens you select determines how much marking area you can utilize. The platform offers an open work table with 140 tapped mounting holes for convenient jig setup.
Rotary Device
The rotary devices allows you to laser mark or engrave cylindrical objects. Customized metal items such as titanium or tungsten rings, stainless steel Yeti tumblers, pens, metal parts, jewelry, are among the most popular.
We offer 2 rotary chuck options: 69mm or 80mm. The 80mm will accommodate larger objects while the 69mm is for delicately securing small items such as rings.
SPECS
- FIBER LASER POWER
20W, 30W, 50W, 60W (Q-Switch or mopa)
- SPEED
SPEED: 3,000MM / SEC
- LASER WAVELENGTH
1064NM
- REPEATED ACCURACY
0.002"
- COOLING METHOD
FORCED AIR
- BEAM QUALITY
20 - 30W = < 1.5M2; 50W-60W = <1.8M2
- POWER REQUIREMENT
110V-230V/50HZ-60HZ
- IMAGE FORMATS
SUPPORTS PLT, BMP, DXF, JPG, TIF, AI, PNG, JPG, ETC.
- NET WEIGHT
40Kg
- MACHINE DIMENSIONS
590MMdEEP X 490MM L X 750MM H
- WARRANTY
2-YEARS INCLUDING FIBER LASER
