CCD Visual Positioning Marking
Brand new automatic fiber laser marking machine, use CCD visual positioning technology to achieve efficient marking and save a lot of labor.
CCD visual system include: high resolution camera, shadowless lamp, conveyer.
Equipped with industrial computer, include English version CCD visual software.
CCD visual system include: high resolution camera, shadowless lamp, conveyer.
Equipped with industrial computer, include English version CCD visual software.
Introduction
- Brand new automatic fiber / UV / CO2 laser marking machine, use CCD visual positioning technology to achieve efficient marking and save a lot of labor.
- CCD visual system include: high resolution camera, shadowless lamp, conveyer.
- Equipped with industrial computer, include English version CCD visual software.
- Q-Switch or MOPA fiber laser source are optional.
- Suitable for metallic and non-metallic materials (Fiber, UV, CO2 laser optional).
- It is environmental friendly and of easy maintenance.
- Service life more than 200,000 hours.
Application
- Best companion for varies industries including jewellery, cell phone, electric appliances, kitchenware, glasses, stainless steel products, electronic components, buckles, communication apparatus... etc.
- Able to engrave codes, LOGO, serial numbers..etc.
- For all metals including gold, silver, copper, alloy, aluminum, steel and stainless steel. Also fits for non-metal including plastics, PVC materials and glasses.
Features
- Environmental friendly, easy operation and maintenance
- Service life more than 200,000 hours.
- Fits for all metal and varies non-metal materials
- Compact design, simple interface, high precision
- Flexible and adjustable processing direction
- Large area cooling holes improve efficiency
Specification
- Working Size: 70*70 - 150*150 mm
- Wavelength: 1064/355/10600 nm
- LASER POWER
Fiber:20W, 30W, 50W, 60W, 100W (Q-Switch OR mopa)
UV: 3W, 5W, 8W, 10W, 15W, 20W
CO2: 30W, 40W, 60W, 100W
- CCD marking accuracy: < 0.2mm
- Engraving Depth: ≤1.2 mm (0.05")
- Engraving Speed: 800 characters/s
- Minimum Line Width: 0.012 mm
- Minimum Character: 0.15 mm
- Repeated Accuracy: ±0.003 mm
- Beam Quality: Depends on the laser source
- Focus Point Diameter: <0.01mm
- Cooling Type: Built-in air cooling
- Working Temperature: 0-35℃
- File Format: AI, BMP, JPG,GIF,PNG,TIF, DST, DWG, DXF, DXP, LAS, PLT, etc
- Power Requirement: 110V-230V/50HZ-60HZ
- Machine Weight: 140-180 kg
UV laser model

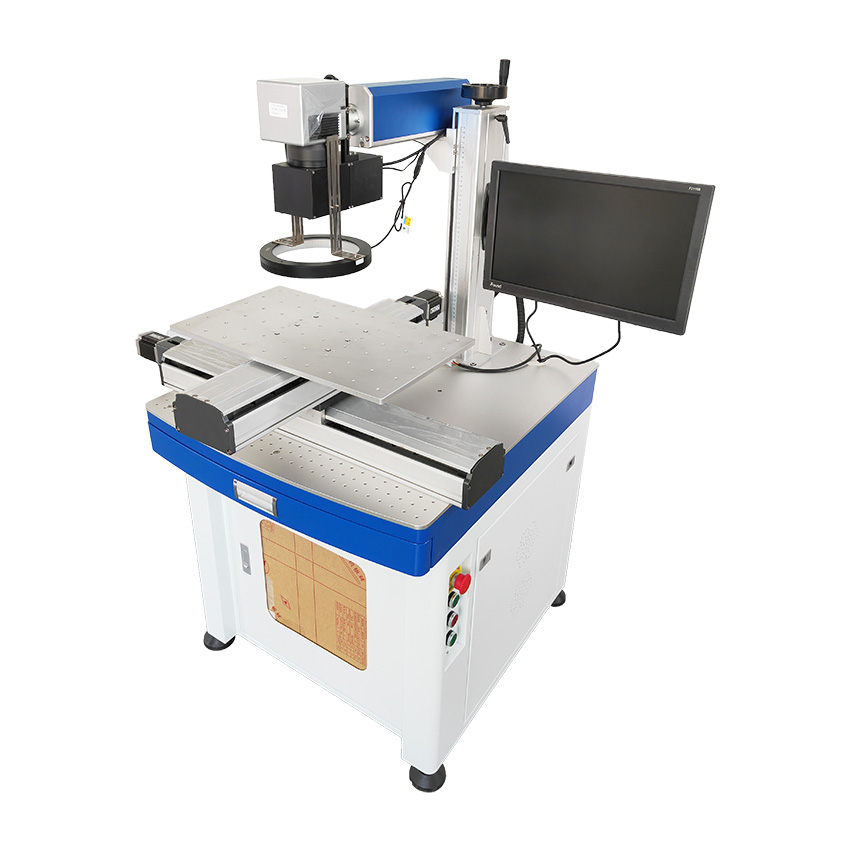

With motorized XY table
With white color conveyer belt and back light system

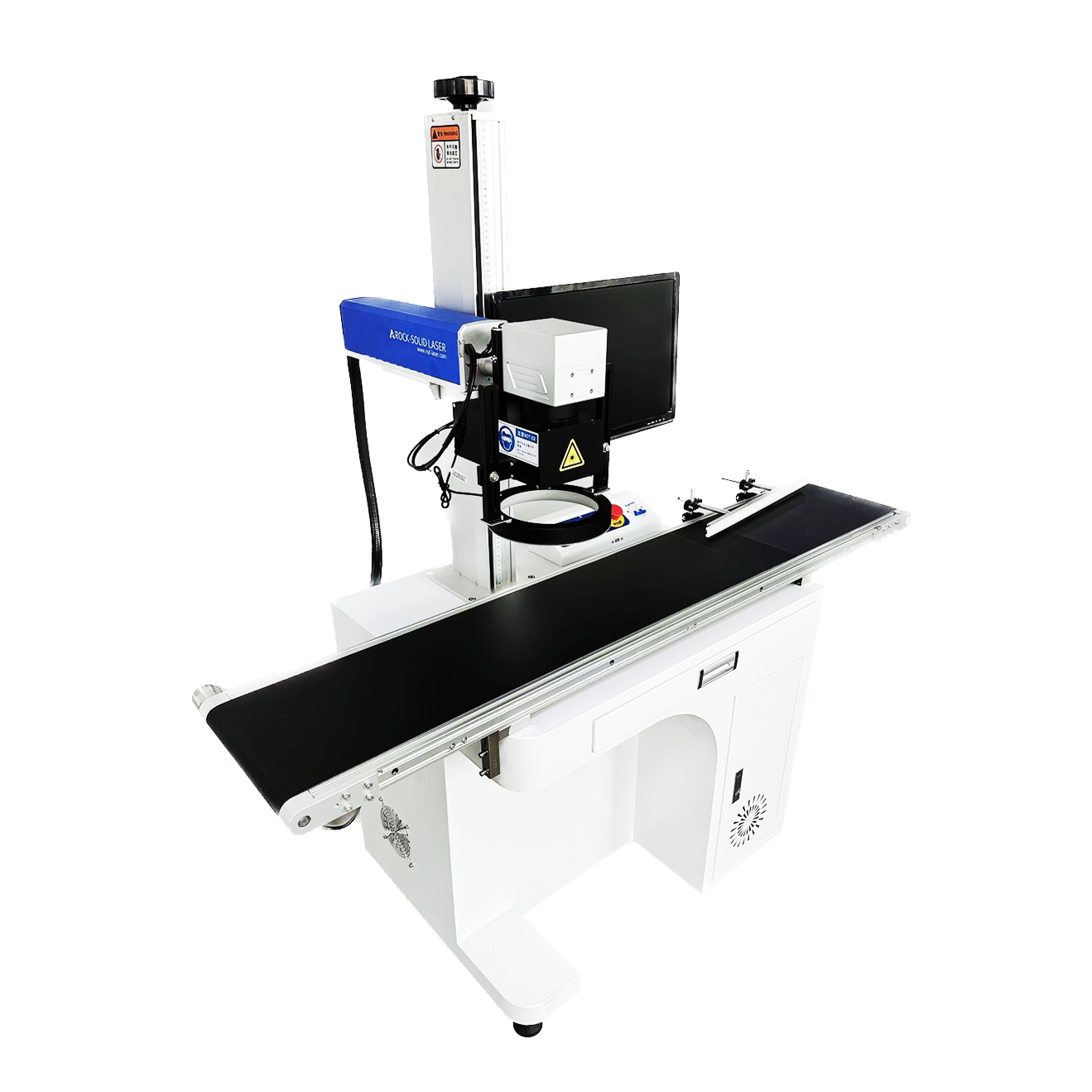

With black color conveyer belt
