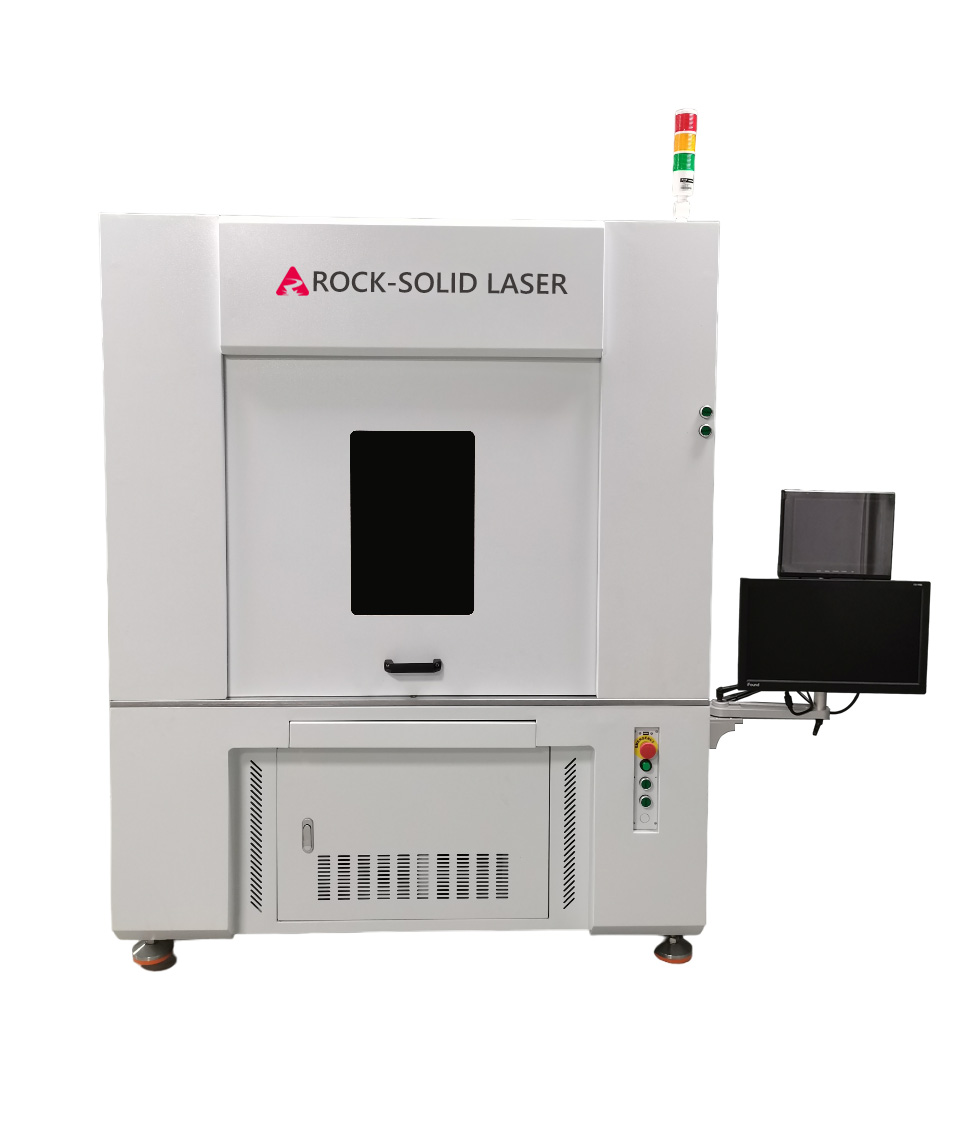

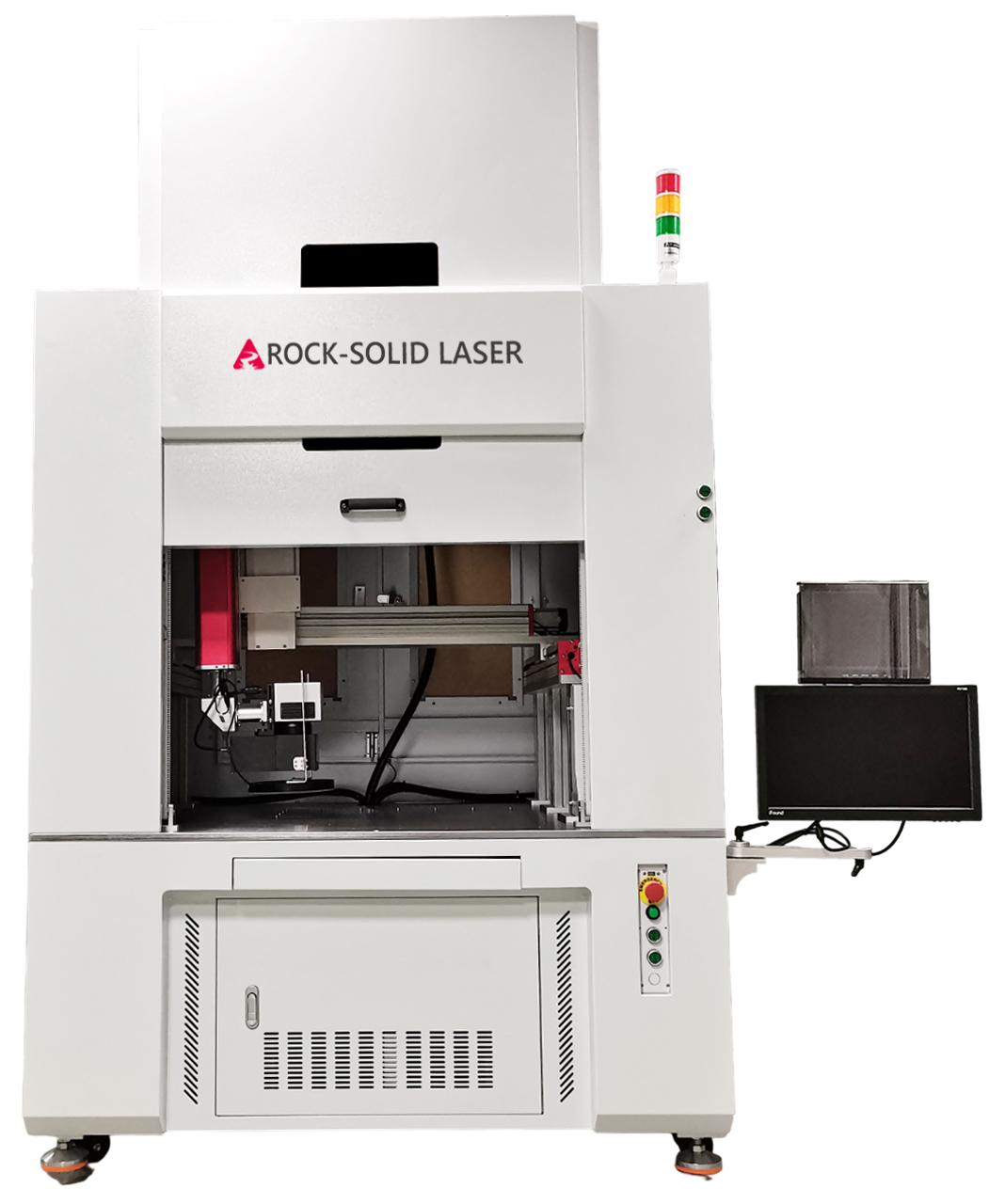

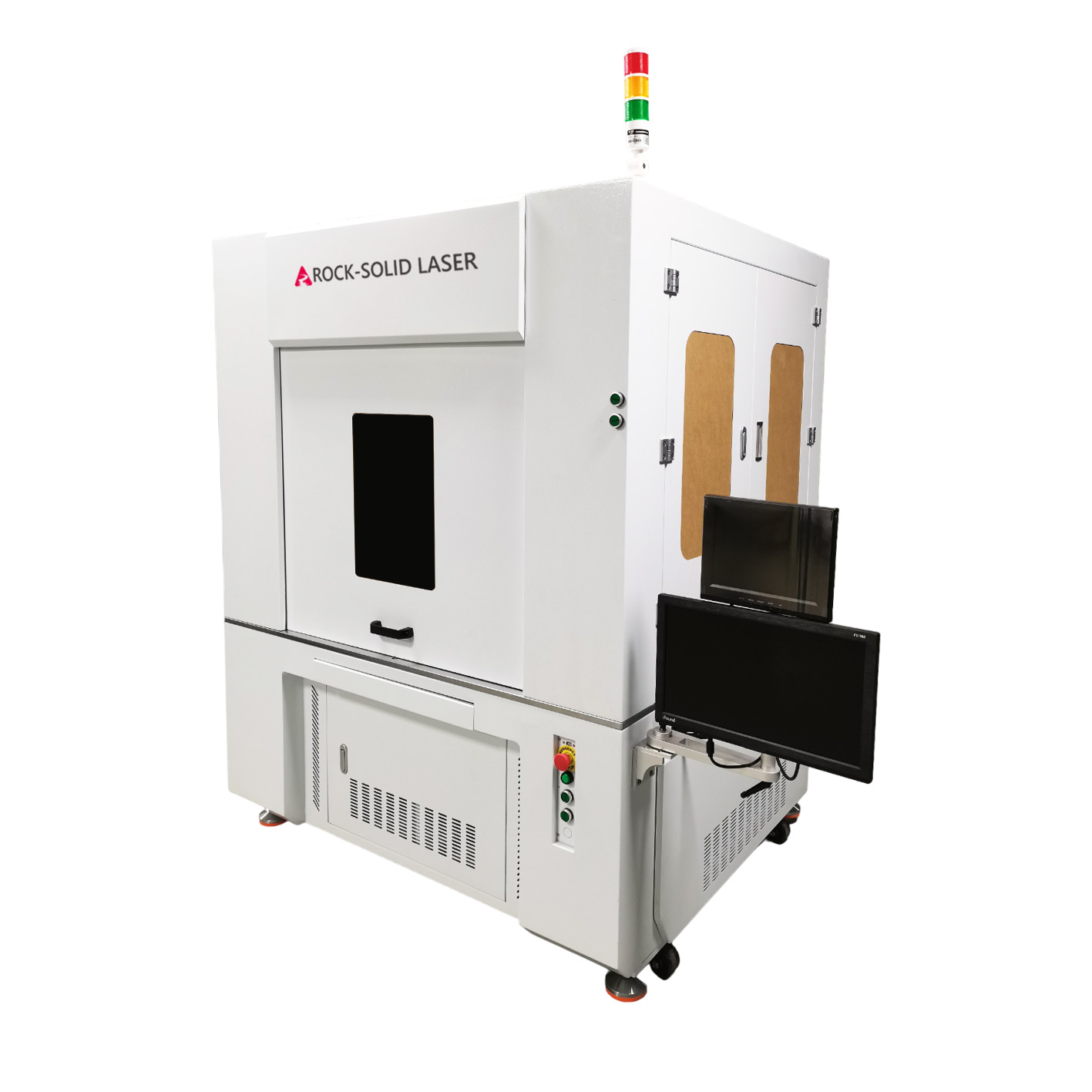

Ultra-large-format CCD vision positioning fully automatic fiber laser marking machine
Adopting advanced CCD vision recognition system and fully automatic gantry control system, the machine realizes fully automatic laser marking/engraving work within a range of 800*800mm or larger. You only need to place the product to be engraved into the machine, and it can automatically complete the marking/engraving task without manual intervention. It greatly liberates labor, saves labor costs and improves production efficiency.
Introduction
- Adopting advanced CCD vision recognition system and fully automatic gantry control system, the machine realizes fully automatic laser marking/engraving work within a range of 800*800mm or larger. You only need to place the product to be engraved into the machine, and it can automatically complete the marking/engraving task without manual intervention. It greatly liberates labor, saves labor costs and improves production efficiency.
- The machine can be customized, welcome for inquiry.
- Fully enclosed design, isolate laser hazards and meet laser safety requirements in your country.
- Equipped with industrial computer, include English version CCD visual software.
-
Real-time monitoring system, allowing you to stay in control of the work process at all times.
- Q-Switch or MOPA fiber laser source are optional.
- Suitable for metallic, ceramic, fiber carbon some plastics.
- It is environmental friendly and of easy maintenance.
- Service life more than 200,000 hours.
Application
- Best companion for varies industries including jewellery, cell phone, electric appliances, kitchenware, glasses, stainless steel products, electronic components, buckles, communication apparatus... etc.
- Especially suitable for products with large dimensions or long marking/engraving times.
- Able to engrave codes, LOGO, serial numbers..etc.
- For all metals including gold, silver, copper, alloy, aluminum, steel and stainless steel.
Specification
- Working Size: 800*800mm or larger
- Wavelength: 1064/355/10600 nm
- CCD marking accuracy: < 0.2mm
- Engraving Depth: ≤1.2 mm (0.05")
- Engraving Speed: 800 characters/s
- Minimum Line Width: 0.012 mm
- Minimum Character: 0.15 mm
- Repeated Accuracy: ±0.005 mm
- Service Life: Over 200,000 hours
- Beam Quality: Depends on the laser source
- Focus Point Diameter: <0.01mm
- Applicable Working Temperature: 0-35℃
- File Format: AI, BMP, JPG,GIF,PNG,TIF, DST, DWG, DXF, DXP, LAS, PLT, etc
- Machine Weight: 300 kg
- Package Dimension (L* W* H): 170*150*180 cm
