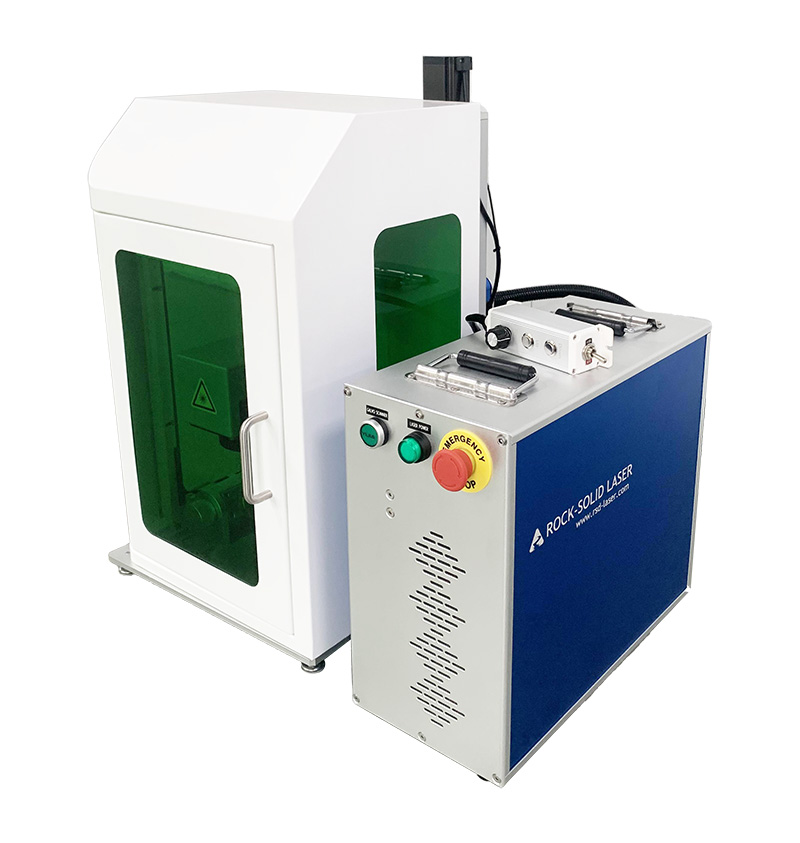

Desktop Fiber Laser with Shield

Safety First:

Equipped with a laser guard to isolate laser hazards and meet laser safety requirements in each country.

20W-100W Fiber Laser Power (Q-switch or MOPA)

20W-30W is great for most metal marking/engraving applications. For increased speed and etching depth you can choose 50w-80W. Two (2) year warranty on the power source.

 70*70mm-300*300mm Marking Area

The Focal Lens Length Effects Both Marking Area and Power

The focal lens you select determines how much of that work area and concentrated power you can utilize.  The shorter focal length lens comes standard and gives you a 110*110mm marking area with a smaller spot size and more concentrated power compared to the taller focal length lenses.

The optional taller focal length lenses expand the marking area up to: 300*300mm.  The taller focal length lenses expand your marking area at the

expense of concentrated power.   Therefore, the focal lenses that provide either 70*70mm, 150*150mm, 175*175mm, 250*250mm and 300*300mm work areas.

Permanent Marking

Mark or etch detailed fonts or images into smooth or uneven metal parts including firearms, tools, jewelry, PVC, Granite, Acrylics and more.  See Material Capabilites in the tab below.

Rotary Chuck Options

The rotary allows you to laser mark or engrave cylindrical objects. Customized metal items such as titanium or tungsten rings, stainless steel Yeti tumblers, pens, metal parts, jewelry, are among the most popular.

We offer 2 rotary chuck options: 69mm or 80mm. The 80mm will accommodate larger objects while the 69mm is for delicately securing small items such as rings.

​​​​​​​Mobile Desktop With Open Marking Platform

We presents a flexible, open marking platform that won't limit material size like smaller fully enclosed units. Grab handles for lifting and convenient mobility. Convienient metal tapped holes for setting up jigs. Fiber Marker safety glasses are included. An optional shroud can also be purchased to meet stricter safety requirements.

​​​​​​​Reliable Speed & Precision - 100,000+ Hours

Extremely reliable for demanding processing speeds and precision. The solid state 1064nm fiber laser offers a 100,000+ hours life span.

​​​​​​​Warehoused Replacement Parts & Accessories For Quick Replacement

Having supported thousands of businesses, hobbyists, educational, military, and Government institutions we know and understand how critical it is to be able to deliver competant and timely support.  Quality support begins with warehousing ALL parts to the machine you purchase – in our facilites.  That way if you have an issue with your laser cutter we can not only diagnose the problem we can also ship you the part you need same or next day.  This way you experience minimal down time.

​​​​​​​Warranty - 2 Year Parts - Including Fiber Laser

Our laser systems are warranted to be free from defects in material and/or workmanship under normal use and service for a best-in-class period of two (2) years from the date of purchase.

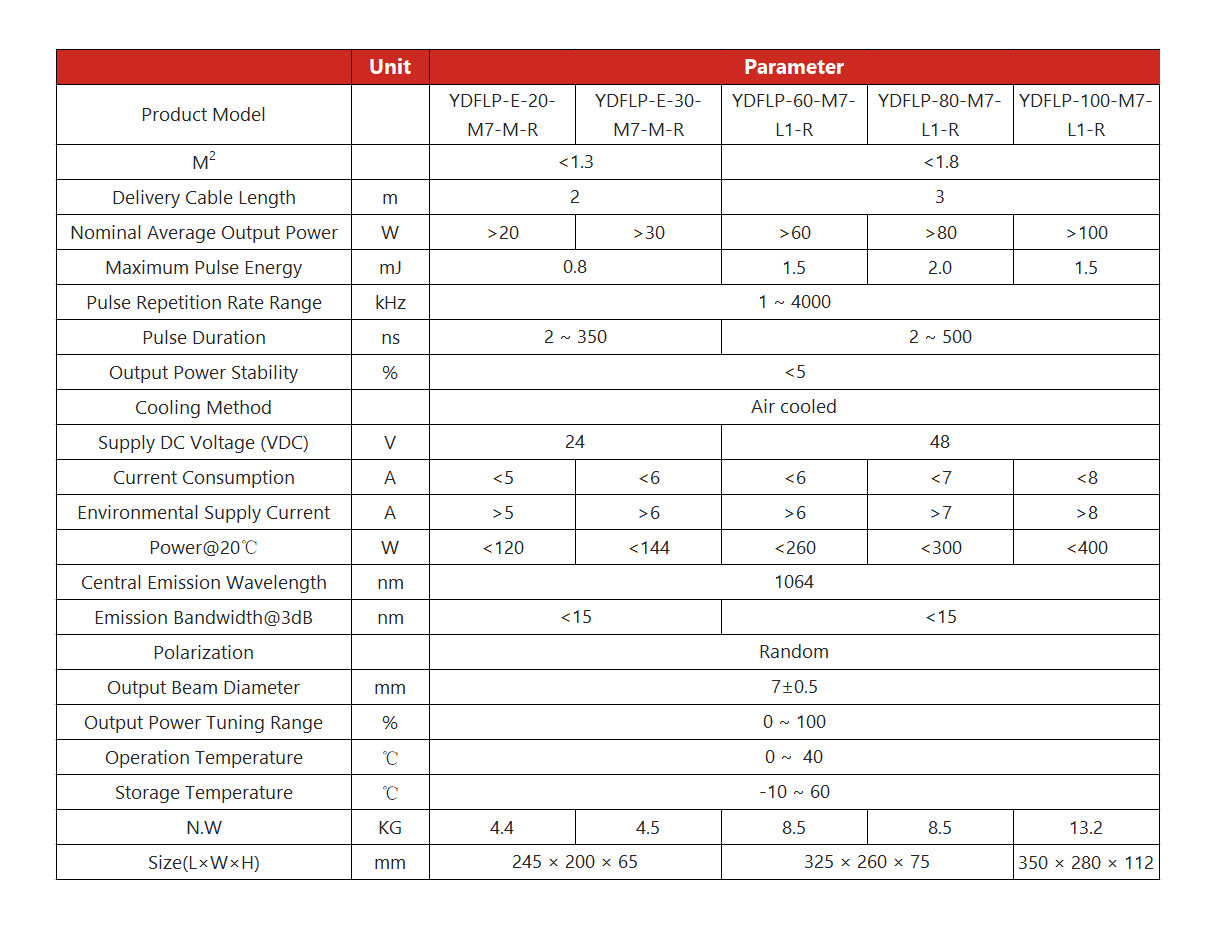

 SPECS
